Swift Deploy, Full Angle Adjustment, Lightweight Component
◆ Illumination directions and angles can be adjusted freely
◆ 5-stage dimming and timer function
◆ Ingress Rating IP67 rainproof
◆ Lightweight, easy to deploy tripod
型式 :
MKT1外部保護性能 :
IP66 / IK10作業環境温度 :
-40℃ ~ +50℃配光タイプ :
長距離フラッドLED消費電力 :
300W / 500W高さ（展開時） :

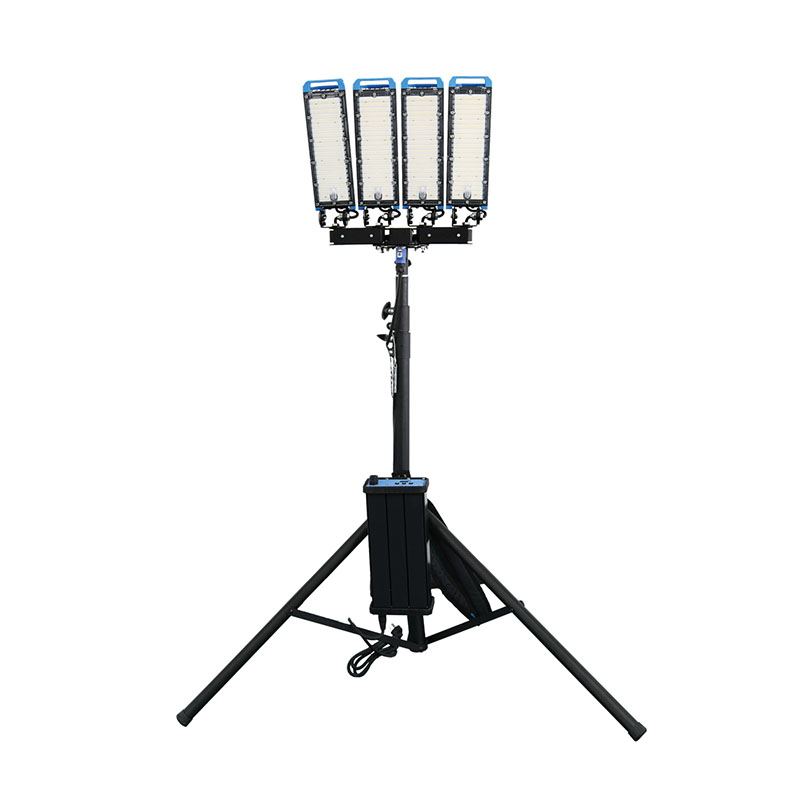

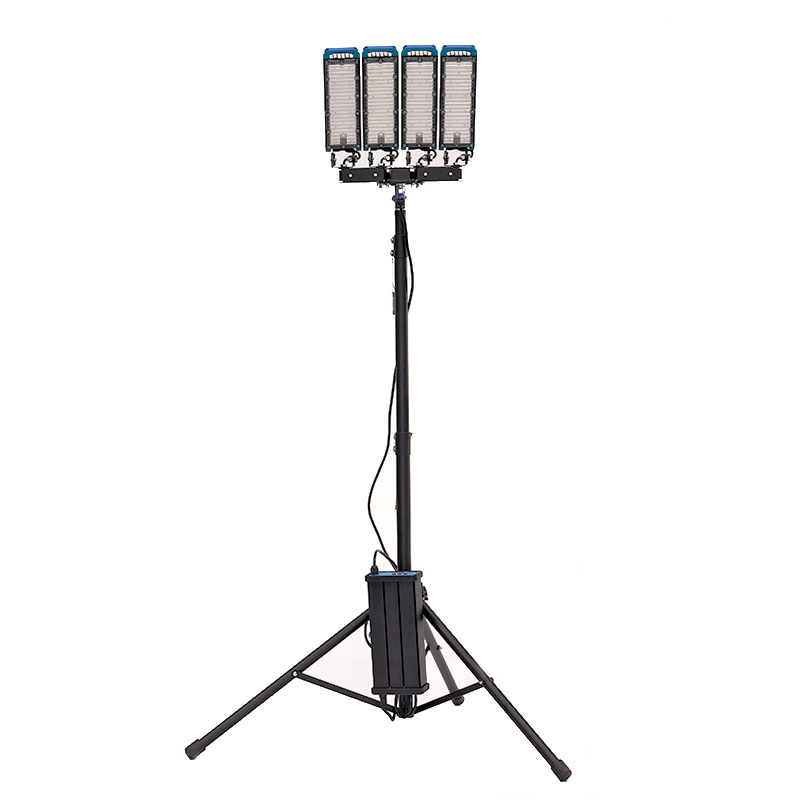

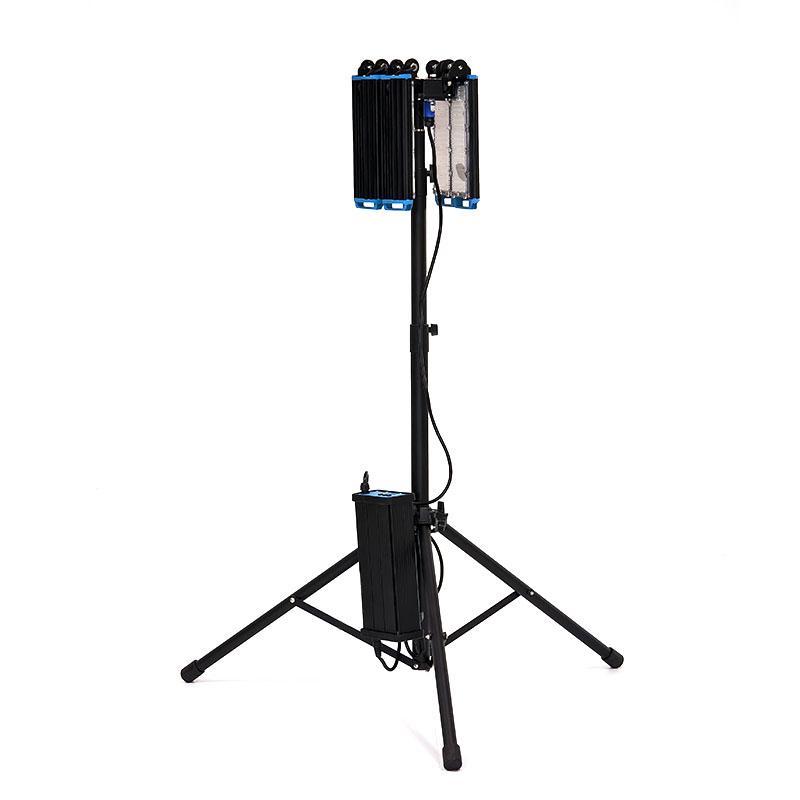

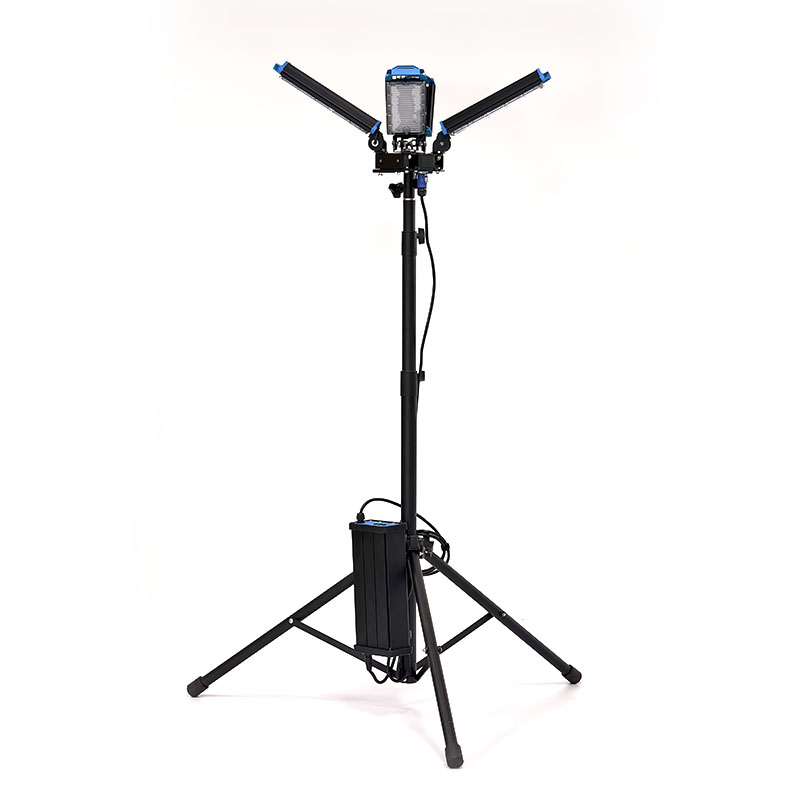

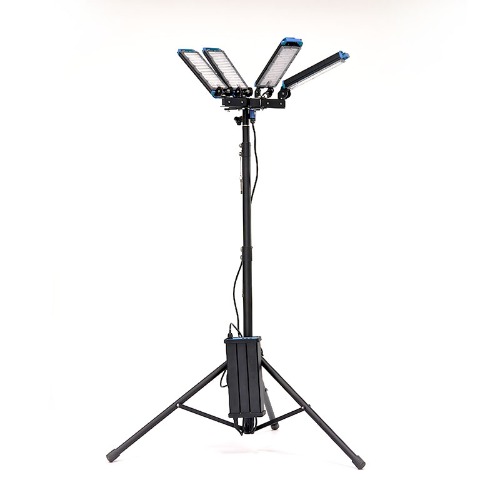

2.6MMKT1-320/480 mobile multi module floodlight is designed for harsh environment like mine and quarry, equiped with high level of protection against dust, water, impact and viberation.
Fitted with high performance LED chips, self-developed light configuration and balanced heat dispersing structure, it can achieve an overall satisfying lighting effect.
Floodlight is not easy to degenerate over time, it can uphold 95% of the performance after 3 years of usage, 10 hours per day.
| Model | MKT1-480 |
| Floodlight type | 4 pcs angle adjustable floodlight |
| Power | Maximum 480 W, dimmable |
| Effective brightness | 72000 lm |
| Input voltage | AC 100~277 V |
| Frequency | 50 / 60 Hz |
| Color temperature | 5000 k |
| Color rendering | Ra70 |
| Protective performance | IP66 / IK10 |
| Lens type | Long-distance flood |
| Dimensions - When the light projector is deployed |
255x230x370 mm |
| Weight |
7.4 kg(light) 5.8 kg(driver) 6 kg(tripod) 9.8 kg(case) |
Illuminance distribution diagram
360-degree irradiation (balloon mode)
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
Spotlight mode
1 mobile floodlight, floodlight height 2.5M, irradiation angle 70°
Application scenarios
Swift Deploy, Full Angle Adjustment, Lightweight Component ◆ Illumination directions and angles can be adjusted freely ◆ 5-stage dimming and timer function ◆ Ingress Rating IP67 rainproof ◆ Lightweight, easy to deploy tripod
続きを読む
用途：道路工事・災害救援など ◆ 安心・長寿命・高性能の1440whリン酸鉄リチウムバッテリー搭載 ◆ バッテリーユニットの取り外しが可能。 長時間の工事現場でバッテリー交換が可能 ◆ ライト部 - IP66、バッテリー - IP65、電源部分も防雨処置済み ◆ ライト消耗電力150w(max)で、21300lm以上の器具光束を持つ ◆ 5段調光 ・ タイマー機能 ◆ 小型・軽量化になったゆえ、移動・運搬の利便性が向上 ◆ NETIS登録 ( VE )
続きを読む
用途：道路工事・災害救援など ◆ 安心・長寿命・高性能の1440whリン酸鉄リチウムバッテリー搭載 ◆ バッテリーユニットの取り外しが可能。 長時間の工事現場でバッテリー交換が可能 ◆ ライト部 - IP66、バッテリー - IP65、電源部分も防雨処置済み ◆ ライト消耗電力150w(max)で、21300lm以上の器具光束を持つ ◆ 5段調光 ・ タイマー機能 ◆ 小型・軽量化になったゆえ、移動・運搬の利便性が向上 ◆ NETIS登録 ( VE )
続きを読む
Sturdy, Auto Lifting Rod, High Mast ◆ A heavier retractable quadpod further improve its steadiness ◆ Maximum power comsumption of 500w can produce a stable 70000lm output. ◆ 0 to 100% dimming function ◆ Its mast can reach a maximum height of 5 m with just a push of button
続きを読む
