Accessory,

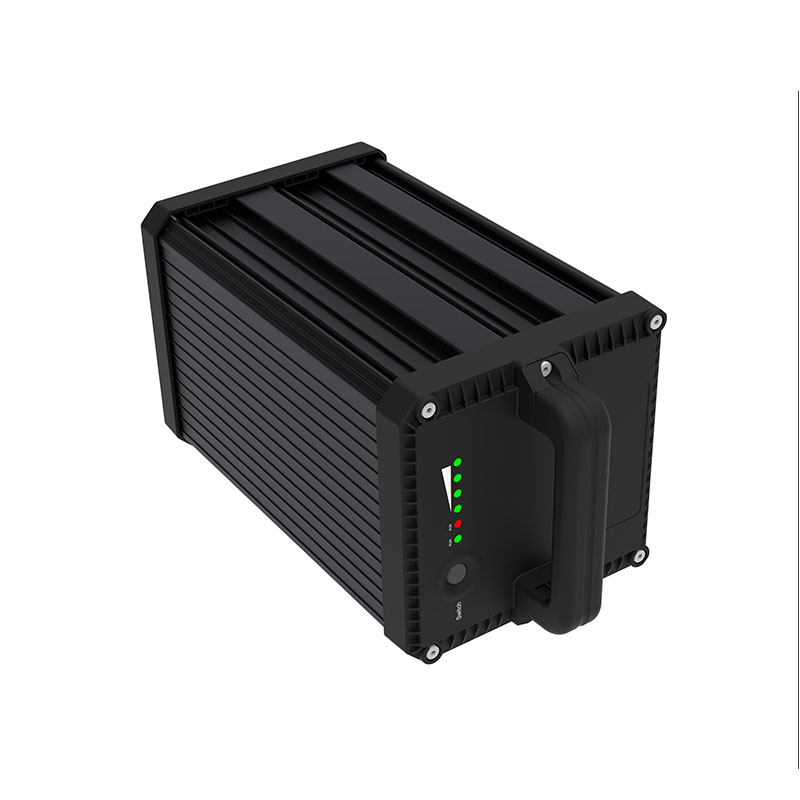

◆ Cartridge design with a carrying handle
◆ Ultra-high performance in impact resistance and vibration resistance
◆ Small size, strong output
◆ A built-in BMS that optimizes battery's charging and discharging progress
◆ Made with LFP cells that known for its high safety and long lifespan
◆ Equipped with a self heating system for better performance under cold condition
型式 :
CSP-1280外部保護性能 :
IP65作業環境温度 :
充電 -10℃ ~ 60℃・放電 -20℃ ~ 60℃定格容量 :
1280Wh定格出力 :
1280W質量 :
≈13.5kgCSP-1280 has IP65 dustproof and waterproof performance, and high impact and vibration resistance. This model is especially suitable for remote, high altitude locations.
This battery pack doesn't have a built-in inverter, which means it can only operate when paired with a controller, or simply served as a module in energy storage system.
Rated capacity: 1280Wh
Power: 1280W
Nominal Voltage: 12.8V DC
Working Temperature: -10℃ ~ 60℃ Charge
-20℃ ~ 60℃ DischargeCommunication: RS485, CAN
Configuration: 16pcs
Ingress Rating: IP65
Cycle life: Capacity ≥80% after 5000 charge-discharge cycles (under the condition of 25℃ ambient temperature)
Application scenarios
Spec sheet
| Model | CSP-1280 |
| Rated Energy | 1242 Wh |
|
Nominal Voltage |
12.8V DC |
|
Nominal capacity |
100Ah |
|
Rated output power |
Max 1280W |
|
Depth of discharge |
95% |
|
Working Temperature |
-10℃ ~ 60℃ Charge; -20℃ ~ 60℃ Discharge |
| Battery type | Lithium iron phosphate ion(LFP) |
|
Communication |
RS485, CAN |
|
Configuration |
16pcs |
|
Weight |
≈12kg |
|
Dimension |
L360 x W1179 x H179 mm |
|
Cell type |
LFP |
|
Cooling type |
Passive |
|
Breaker |
NO |
|
Ingress Rating |
IP65 |
|
Humidity |
5% ~ 95%(RH) No condensation |
|
Cycle life |
Battery capacity ≥80% after 5000 cycle (At an ambient temperature of 25℃, 0.2C) |

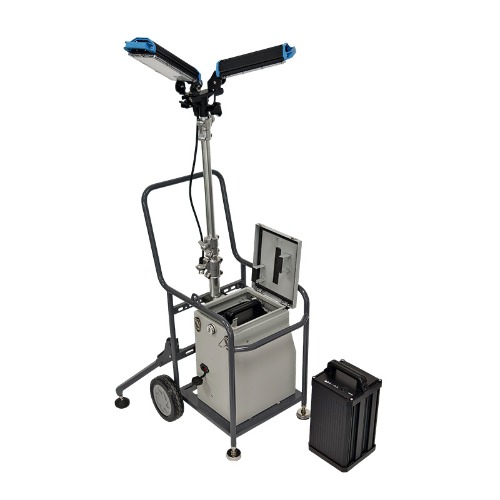

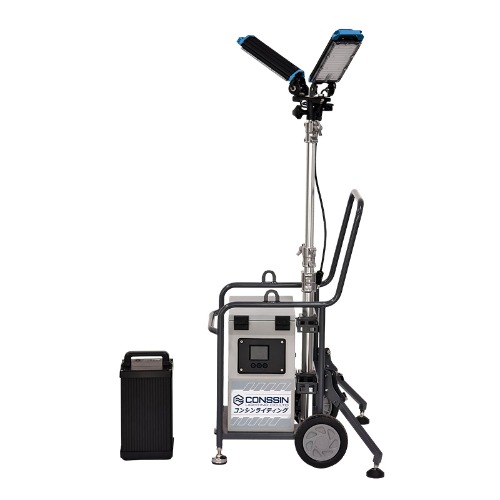

用途：工事現場・日常生活・野外キャンプ・被災時の電力供給 ◆ ポータブル電源の中では高規格の防塵・防水規格 - IP65 ◆ 超高規格の耐衝撃性能と耐振動規格 ◆ 並列運転システムで容量・出力を拡張でき ◆ 安定性の高い自社開発BMSで充電・放電状況を把握 ◆ 安全性の高いリン酸鉄リチウムイオン電池を使用 ◆ 安心材料として消火システムを搭載 ◆ UPS機能（無停電電源装置）
続きを読む
用途：工事現場・日常生活・野外キャンプ・被災時の電力供給 ◆ IP54級防塵・防水規格 ◆ 超高規格の耐衝撃性能と耐振動規格 ◆ 並列運転システムで容量・出力を拡張でき ◆ 安定性の高い自社開発BMSで充電・放電状況を把握 ◆ 安全性の高いリン酸鉄リチウムイオン電池を使用 ◆ 安心材料として消火システムを搭載 ◆ UPS機能（無停電電源装置）
続きを読む
用途：工事現場・日常生活・野外キャンプ・被災時の電力供給 ◆ 1536Wカートリッジ式バッテリー2個入り・随時交換 ◆ IP54級防塵・防水規格 ◆ 超高規格の耐衝撃性能と耐振動規格 ◆ 並列運転システムで容量・出力を拡張でき ◆ 安定性の高い自社開発BMSで充電・放電状況を把握 ◆ 安全性の高いリン酸鉄リチウムイオン電池を使用 ◆ 安心材料として消火システムを搭載 ◆ UPS機能（無停電電源装置）
続きを読む
用途：工事現場・日常生活・野外キャンプ・被災時の電力供給 ◆ IP54級防塵・防水規格 ◆ 超高規格の耐衝撃性能と耐振動規格 ◆ 並列運転システムで容量・出力を拡張でき ◆ 安定性の高い自社開発BMSで充電・放電状況を把握 ◆ 安全性の高いリン酸鉄リチウムイオン電池を使用 ◆ 安心材料として消火システムを搭載 ◆ UPS機能（無停電電源装置）
続きを読む
Residential Power Backup, Energy Storage System Component, Off-grid Work Site ◆ IP65 grade dustproof and waterproof performance, it can withstand most industrial environments ◆ Ultra-high performance in impact resistance and vibration resistance ◆ Parallel function can support up to 16 batteries, to form up a small scale ESS ◆ A built-in BMS that optimizes battery's charging and discharging progress ◆ Made with LFP cells that known for its high safety and long lifespan ◆ Equipped with a self heating system for better performance under cold condition
続きを読む
Off-grid Work Site, A Wide Operational Temperature ◆ IP65 grade dustproof and waterproof performance, it can withstand most industrial environments ◆ Ultra-high performance in impact resistance and vibration resistance ◆ Small size, strong output ◆ A built-in BMS that optimizes battery's charging and discharging progress ◆ Made with LFP cells that known for its high safety and long lifespan ◆ Equipped with a self heating system for better performance under cold condition
続きを読む

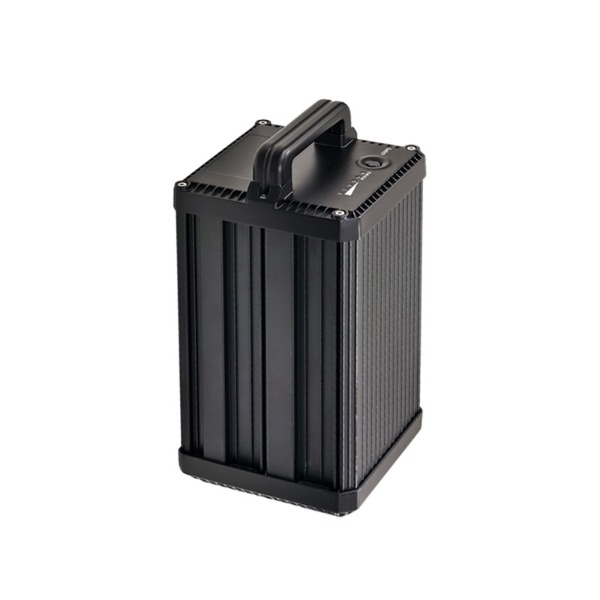

Accessory, ◆ Cartridge design with a carrying handle ◆ Ultra-high performance in impact resistance and vibration resistance ◆ Small size, strong output ◆ A built-in BMS that optimizes battery's charging and discharging progress ◆ Made with LFP cells that known for its high safety and long lifespan ◆ Equipped with a self heating system for better performance under cold condition
