Application: residential power backup, energy storage system component, off-grid work site
◆ IP65 grade dustproof and waterproof performance, it can withstand most industrial environments
◆ Ultra-high performance in impact resistance and vibration resistance
◆ Parallel function can support up to 16 batteries, to form up a small scale ESS
◆ A built-in BMS that optimizes battery's charging and discharging progress
◆ Made with LFP cells that known for its high safety and long lifespan
◆ Equipped with a self heating system for better performance under cold condition

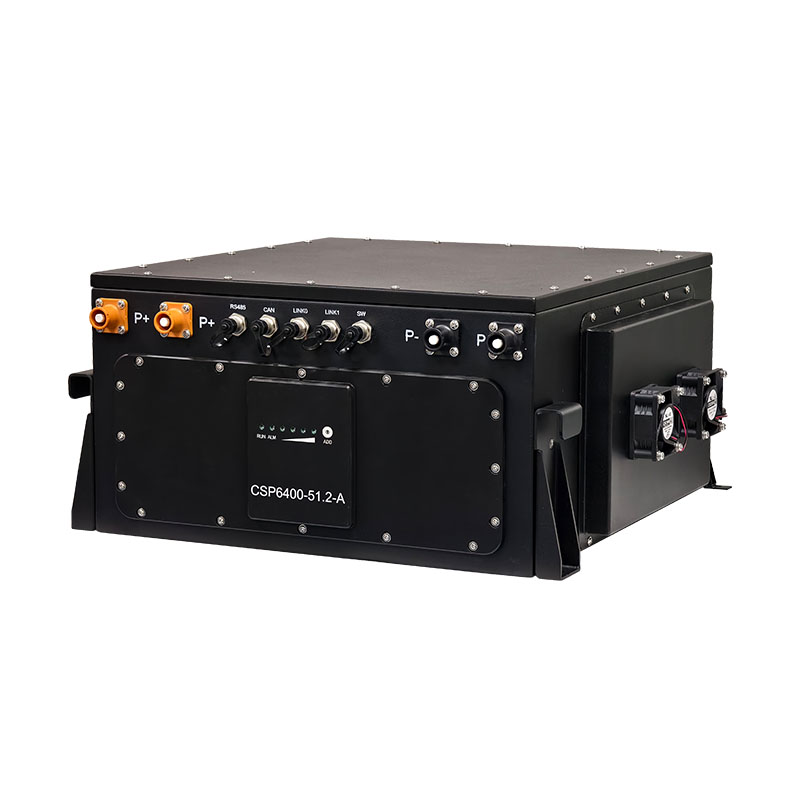

CSP-6400 battery pack is mainly developed as parts of ESS. It has IP65 dustproof and waterproof performance, and high impact and vibration resistance.
This battery pack doesn't have a built-in inverter, which means it can only operate when paired with a controller, or simply served as a module in energy storage system.
Rated capacity: 6400Wh
Power: 6400W
Overload power: 6400W
AC outlet: 100V grounded 2P x 2
DC outlet: USB-A x 1, USB-C x 1
AC charging time: 3 hours
Solar charging: up to 800W
Expansion 1: Use parallel cord to enable parallel operation with two units.
Expansion 2: Using the expansion connector, parallel operation with 16 units is possible.
Cycle life: Capacity ≥80% after 4000 charge-discharge cycles (under the condition of 25℃ ambient temperature)
Application scenarios
Spec sheet
| Model | CSP-6400 |
| Rated capacity | 6400 Wh |
| Rated power | 6400 W |
| Charging time | ≈3 hours (under the condition of 25℃ ambient temperature) |
| Weight | ≈57kg |
| Dimension | L482 x W420 x H217 mm |
| Battery type | Lithium iron phosphate ion(LFP) |
| IP rating | IP65 |
| IK rating | IK09 |
| Rated voltage | 51.2VAC ±4% |
| Rated current | 125A |
| Frequency | |
| Outlet type | 125V・grounded 2P × 3 port |
Application: residential power backup, energy storage system component, off-grid work site ◆ IP65 grade dustproof and waterproof performance, it can withstand most industrial environments ◆ Ultra-high performance in impact resistance and vibration resistance ◆ Parallel function can support up to 16 batteries, to form up a small scale ESS ◆ A built-in BMS that optimizes battery's charging and discharging progress ◆ Made with LFP cells that known for its high safety and long lifespan ◆ Equipped with a self heating system for better performance under cold condition
続きを読む

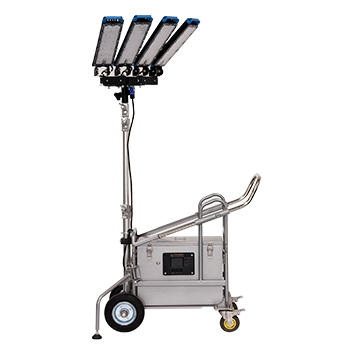

This High-Power LED Sports Area Light features a remote driver design to reduce heat buildup and extend service life. Engineered for demanding environments, it offers IP69 and IK10 protection against water, dust, and impact. With a high lumen output of up to 234,000 lumens per unit, it ensures consistent brightness across large areas. The fixture supports flexible mounting on various pole structures and uses certified components including Samsung or Cree LEDs and Inventronics drivers. DALI-2 and DMX dimming options are available for precise lighting control.
