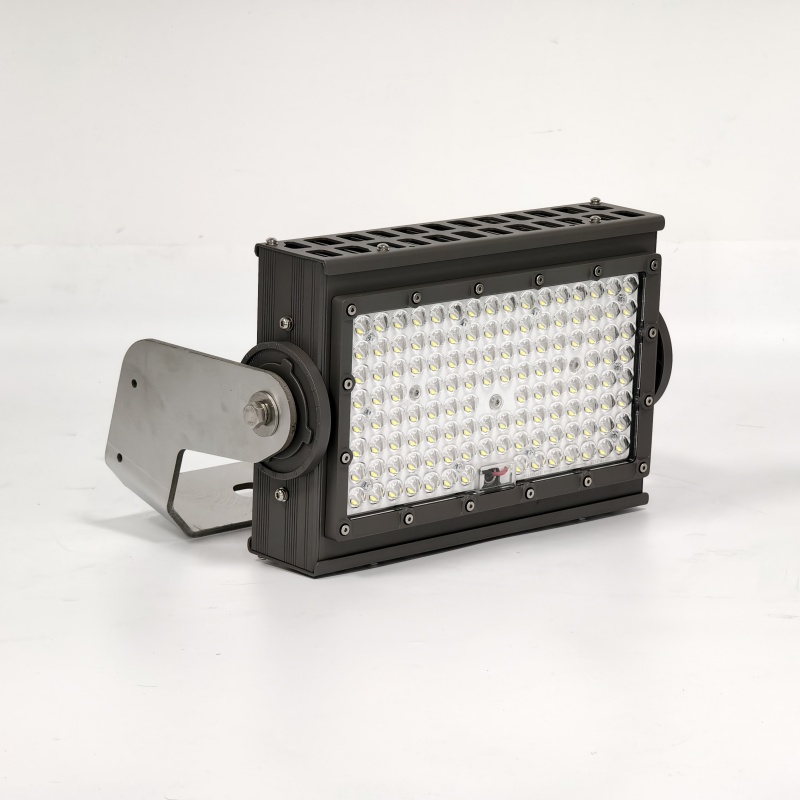

Outdoor LED Light for Football Fields Tennis Courts and Public Sports Facilities

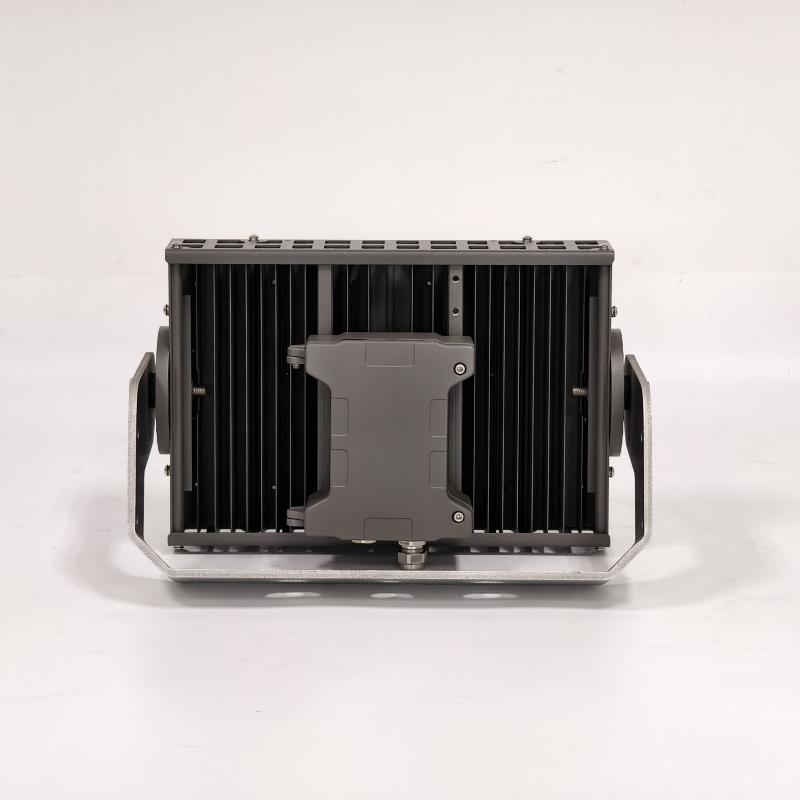

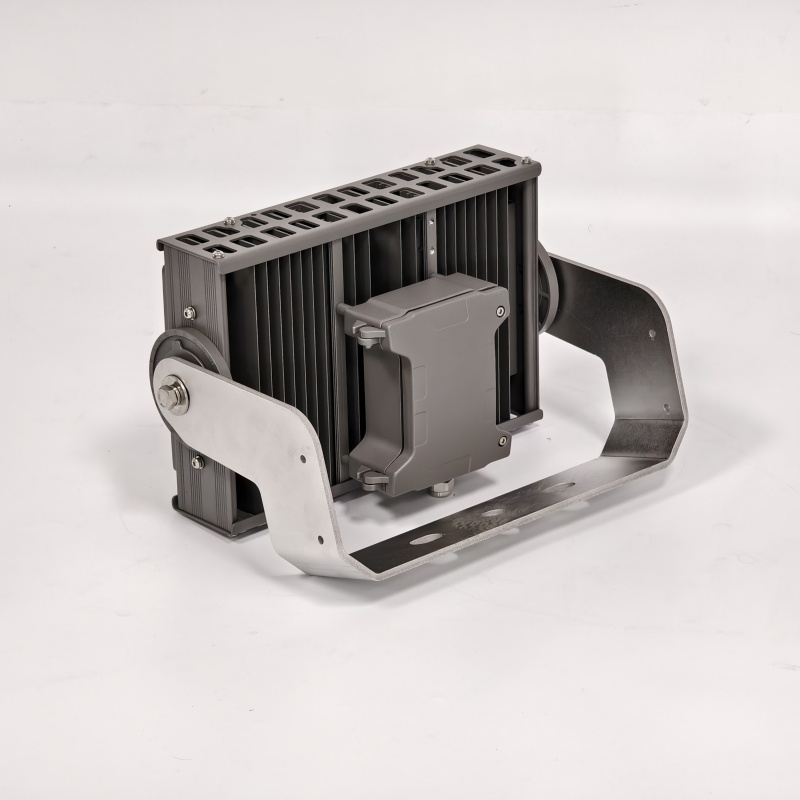

This High-Power LED Sports Area Light features a remote driver design to reduce heat buildup and extend service life. Engineered for demanding environments, it offers IP69 and IK10 protection against water, dust, and impact. With a high lumen output of up to 234,000 lumens per unit, it ensures consistent brightness across large areas.
The fixture supports flexible mounting on various pole structures and uses certified components including Samsung or Cree LEDs and Inventronics drivers. DALI-2 and DMX dimming options are available for precise lighting control.
外部保護性能 :
IP69K / IK10作業環境温度 :
-40℃ ~ +50℃材質 :
アルミ合金・ポリカーボネート演色性 :
Ra80配光タイプ :
非対称広角・中角・狭角
This outdoor LED stadium light is designed to meet the long-term demands of sports venues such as football fields, tennis courts, and public athletic areas. With a high luminous efficacy of up to 140 lm/W and color rendering of 80Ra, it provides consistent brightness across large spaces. The optical system is optimized to reduce light decay over distance, maintaining up to 95% brightness after three years of daily operation (10 hours per day).

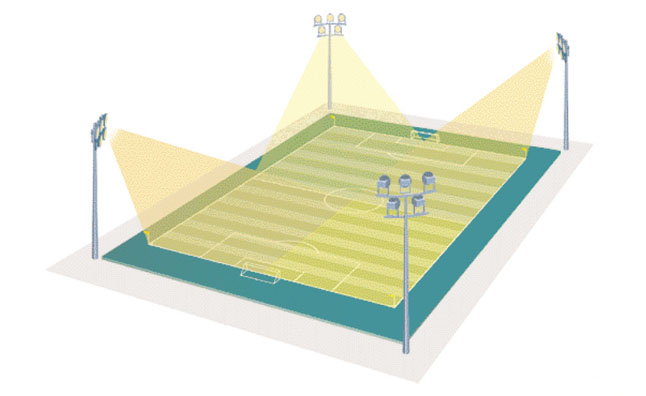

Illuminance Distribution Diagram
Simulation Conditions:
Floodlights: 4
Height: 7m
Beam Angle: 70°
Application Scenarios
Installation Methods
Proper lighting installation plays a crucial role in ensuring uniform brightness, reduced glare, and optimal visibility for both players and spectators. Here are four commonly used configurations of football field light poles based on real-world applications:

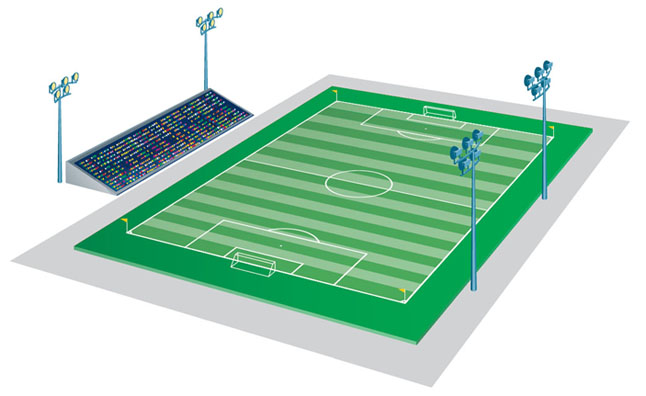

4-Pole Corner Lighting Setup
Configuration: Four poles located at the corners of the field
Luminaires per Pole: 5 high-power LED stadium floodlights
Total Fixtures: 20 units
Recommended Power: 1000W ~ 1500W per unit
Advantages: Provides symmetrical lighting across the field with minimal shadow zones; suitable for standard football pitches
Side Lighting Setup – 5 Lights on 4 Poles
Configuration: Four poles placed evenly along the longer sides of the field (2 per side)
Luminaires per Pole: 5 LED floodlights
Total Fixtures: 20 units
Recommended Power: 1500W or 2000W for maximum reach
Advantages: Ideal for fields with spectator stands or technical benches on the sides; simplifies maintenance and cable layout

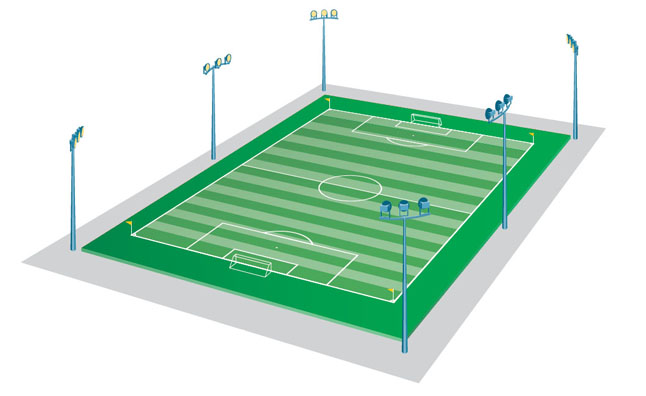

6-Pole Balanced Light Configuration
Configuration: Six poles installed around the field
Luminaires per Pole: 3 LED floodlights
Total Fixtures: 18 units
Recommended Power: 1000W ~ 1500W
Advantages: Balanced brightness; cost-effective solution with good coverage and reduced power consumption

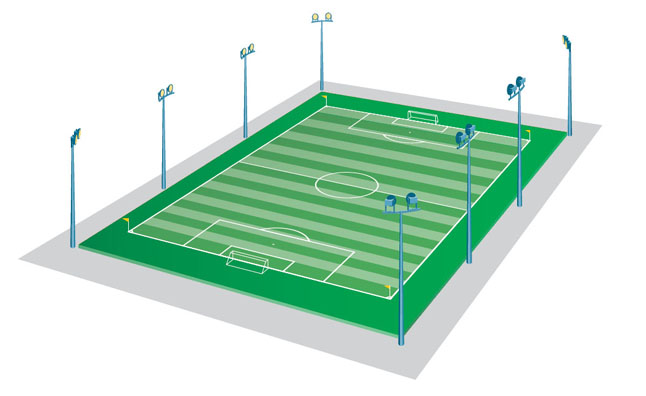

8-Pole Full Coverage Design
Configuration: Eight poles evenly distributed around the field
Luminaires per Pole: 2 high-efficiency LED sports lights
Total Fixtures: 16 units
Recommended Power: 1000W per light
Advantages: Improves illumination uniformity, especially in areas with complex surroundings (e.g., buildings, trees, uneven terrain)
Technical Specifications
| Luminaire info. | ||||||
| Brand | CONSSIN LIGHTING | |||||
| Luminaire Type | Sports Area Light | |||||
| Designed for use in | ★ Stadium ★ Sport Area ★Minesite ★Industrial Area ★Workshops ★Car Parks | |||||
| Model | KFL500 | KFL600 | KFL1000 | KFL1200 | KFL1500 | KFL1800 |
| Rated Power | 500w | 600w | 1000w | 1200W | 1500w | 1800w |
| Driver Installation | Remote | Remote | Remote | Remote | Remote | Remote |
| Operating Temperature Range | -40℃ to +50℃ | |||||
| Ingress Protection Rating | IP69 | |||||
| Impact Rating | IK10 | |||||
| Windage Area | 0.1m² | 0.1m² | 0.2m² | 0.2m² | 0.29m² | 0.29m² |
| UV Resistance | UV Resistance Coating | |||||

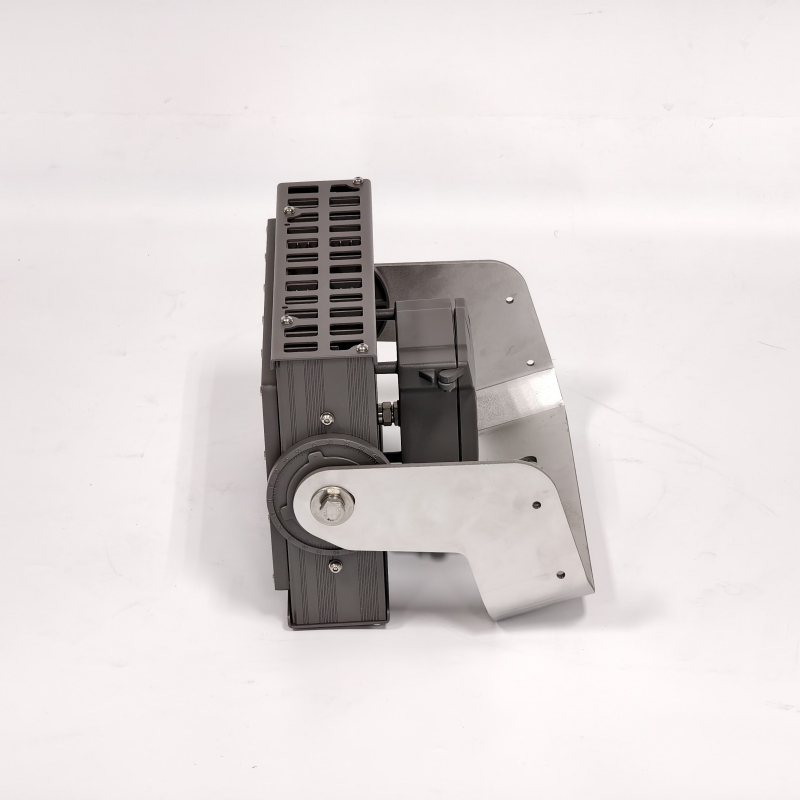

| Fixture Installation | Bracket Mounting | |||||
| Dimmable | Standard DALI-2/DMX | |||||
| Warranty Period | 5 years warranty | |||||
| Material & Finish | ||||||
| Material Composition - Body | Aluminum Alloy & Gray Powder Coating（C5M） | |||||
| Material Composition - Bracket | Stainless Steel 316 | |||||
| Material Composition - Optical | Polycarbonate | |||||
| Material Composition - Cable | Polyvinyl Chloride | |||||
| Dimensions & Weight | ||||||

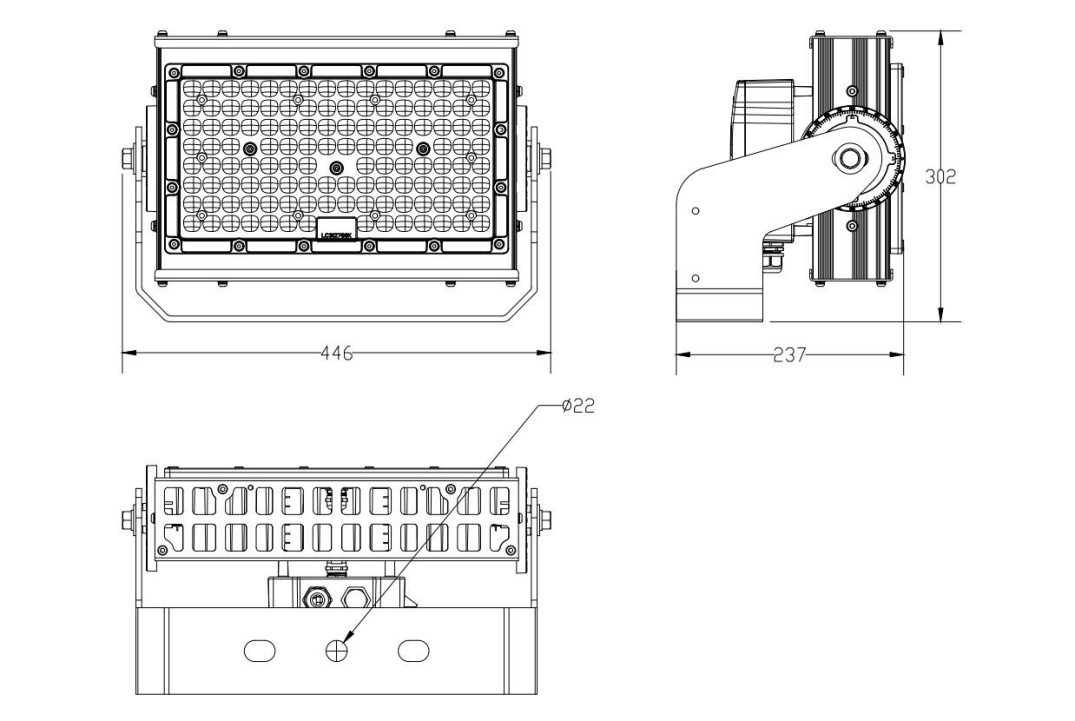

| Luminaire Dimensions (mm) | 304×446×238 | 304×446×238 | 520×446×406 | 520×446×406 | 816×446×517 | 816×446×517 |
| Luminaire Weight (kg) | 12.5 | 12.5 | 20 | 20 | 27 | 27 |
| Remote Driver Box Dimensions (mm) |
310×145×70 | 310×145×70 | 480×152×80 | 480×152×80 | 480×152×80 | 480×152×80 |
| Remote Driver Box Weight(kg) | 3.05 | 3.05 | 5.02 | 5.02 | 6.4 | 6.4 |
| Electrical info. | ||||||
| Operating High Voltage Range | AC 200~480V | AC 200~480V | AC 200~480V | AC 200~480V | AC 200~480V | AC 200~480V |
| Frequency Range | 47-63Hz | |||||
| Power Factor | >0.90 | |||||
| Input Current/240V | 2.08A | 2.5A | 4.16A | 5.0A | 6.25A | 7.5 |
| Input Current/480V | 1.04A | 1.25A | 2.08A | 2.5A | 3.13A | 3.75 |
| Efficiency | >95% | |||||
| Electrical Safety Class | Class I - Standard | |||||
| Surge Protection | 10KV Standard | |||||
| LED Chip Brand | Samsung/Cree | |||||
| Driver Brand | Inventronics | |||||
| Optic Info. | ||||||
| Correlated Color Temperature | 5000K Standard (Option 2700K to 6500K) | |||||
| Color Rendering Index | 80Ra Standard | |||||
| LED Expected Life Span | 50,000-70,000 hrs | |||||
| Lens Options | Luminous Flux Measured by the Luminaire | |||||
| A3-X110°Y20°-Asymmetric | 67500 | 78000 | 135000 | 156000 | 202500 | 234000 |
| TC-X50°Y30°-Medium | 67500 | 78000 | 135000 | 156000 | 202500 | 234000 |
| Efficacy (lm/w) | 130-140 | 125-135 | 130-140 | 125-135 | 130-140 | 125-135 |
Frequently Asked Questions (FAQ)
Q1: What types of sports fields is this LED light suitable for?
A: This product is designed for outdoor sports venues such as football fields, tennis courts, basketball courts, and multipurpose athletic areas. It can also be used in public squares, storage yards, or temporary lighting needs.
Q2: Does this light support smart control systems?
A: Yes, it supports both DALI-2 and DMX protocols, allowing integration into smart lighting systems for remote control, zoning, and dimming functions.
Q3: What is the protection rating? Can it handle harsh outdoor conditions?
A: The light is rated IP69K and IK10, providing strong resistance against water, dust, and impact. It is suitable for long-term use in challenging environments like heat, rain, wind, or dust.
Q4: Will the brightness fade over time?
A: The fixture is built with efficient heat dissipation and high-quality LED chips. Under daily usage of 10 hours, it maintains about 95% of its brightness even after 3 years.
Q5: Are different wattages and beam angles available?
A: Yes, the product is available in multiple power options ranging from 500W to 1800W. Various beam angles such as 70° and asymmetric 110° are offered to match different field layouts.
Q6: How is the light installed? What types of poles are compatible?
A: The luminaire features bracket mounting with adjustable angles. It is compatible with standard round, square, and custom pole structures, supporting configurations like 4, 6, or 8 pole setups.
